DC series long life vrla AGM deep cycle battery uses a different chemistry additives in the positive plates and special AGM separators, The DC series features 70% higher cyclic life with 15 years of float life when compared to the standard Duration range.
Our workshop Produce plate by ourself . For urgent project we support 10-15days fast delivery time.
Item NO.:

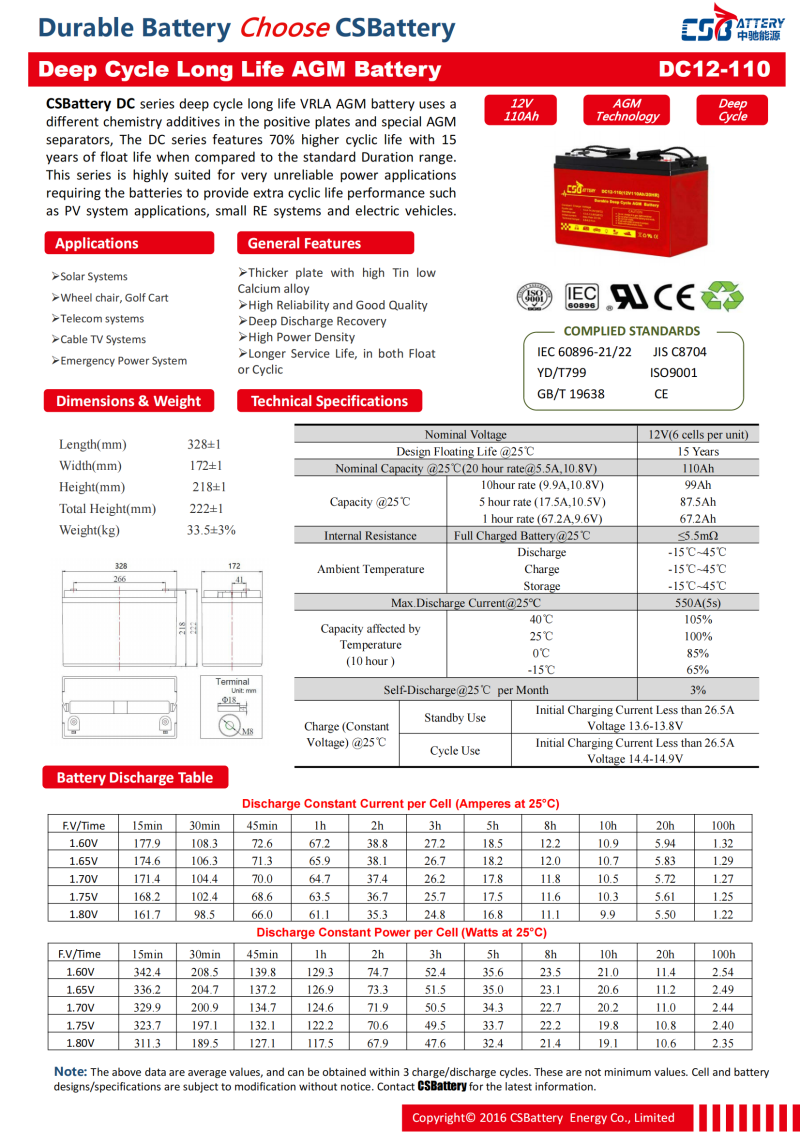

DC12-110 12V 110Ah DProduct Origin:
ChinaColor:
Red Body, Black CoverGoods stock:
180Min order:
12 PCSProduct weight:
0.5-80 KGSLead Time:
25-30 days fast delivery 15daysPlate:
Thicken Flat PlateNominal Voltage:
12V 8V 6VDischarge Rate:
0.2-0.5CElectrolyte:
ACIDWelcome:
OEM Brand, OEM Color...Usage:
Solar/UPS/TelecomCertificates:
CE/IEC/UL/ISOWarranty:
2-3 YearsTrade Terms:
EXW, FOB, CIF
Battery cell for 24V 110Ah 36V 110Ah 48V 110Ah
| Model | Nominal Voltage (V) | Capacity (Ah) | Dimension (mm) | Net Weight | Gross Weight | Terminal | |||
| Length | Width | Height | Total Height | kgs | kgs | ||||
| DC6-200 | 6 | 200 | 306 | 168 | 220 | 222 | 30 | 30.1 | M8 |
| DC6-210 | 6 | 210 | 260 | 180 | 247 | 249 | 29.5 | 29.6 | M8 |
| DC6-220 | 6 | 220 | 306 | 168 | 220 | 222 | 31.5 | 31.6 | M8 |
| DC6-225 | 6 | 225 | 243 | 187 | 275 | 275 | 30.5 | 30.6 | M8 |
| DC6-250 | 6 | 250 | 260 | 180 | 265 | 272 | 34.5 | 34.6 | M8 |
| DC6-310 | 6 | 310 | 295 | 178 | 346 | 366 | 46 | 46.2 | M8 |
| DC6-330 | 6 | 330 | 295 | 178 | 354 | 360 | 46.6 | 46.8 | M8 |
| DC6-380 | 6 | 380 | 295 | 178 | 404 | 410 | 55.3 | 55.8 | M8 |
| DC6-420 | 6 | 420 | 295 | 178 | 404 | 410 | 56.8 | 57.3 | M8 |
| DC8-170 | 8 | 170 | 260 | 182 | 266 | 271 | 34.3 | 34.8 | M8 |
| DC8-200 | 8 | 170 | 260 | 182 | 295 | 300 | 38.3 | 38.8 | M8 |
| DC12-14 | 12 | 14 | 152 | 99 | 96 | 102 | 3.8 | 3.9 | M8 |
| DC12-20 | 12 | 20 | 181 | 77 | 167 | 167 | 6 | 6.1 | M8 |
| DC12-24 | 12 | 24 | 166 | 175 | 126 | 126 | 8.3 | 8.4 | M8 |
| DC12-26 | 12 | 26 | 165 | 126 | 174 | 179 | 8.4 | 8.5 | M8 |
| DC12-35 | 12 | 35 | 196 | 130 | 155 | 167 | 10.5 | 10.7 | M8 |
| DC12-40 | 12 | 40 | 198 | 166 | 174 | 174 | 14.2 | 14.4 | M8 |
| DC12-55 | 12 | 55 | 229 | 138 | 208 | 212 | 16 | 16.5 | M8 |
| DC12-70 | 12 | 70 | 350 | 167 | 178 | 178 | 23.3 | 23.8 | M8 |
| DC12-75 | 12 | 75 | 260 | 169 | 208 | 227 | 25 | 25.5 | M8 |
| DC12-85 | 12 | 85 | 260 | 169 | 208 | 227 | 26.1 | 26.6 | M8 |
| DC12-90 | 12 | 90 | 307 | 169 | 211 | 216 | 28.2 | 28.7 | M8 |
| DC12-100 | 12 | 100 | 307 | 169 | 211 | 216 | 30.2 | 30.7 | M8 |
| DC12-110 | 12 | 110 | 331 | 174 | 214 | 220 | 33.3 | 33.8 | M8 |
| DC12-120 | 12 | 120 | 407 | 173 | 210 | 233 | 39.2 | 39.7 | M8 |
| DC12-135 | 12 | 135 | 344 | 172 | 280 | 285 | 40.8 | 41.3 | M8 |
| DC12-150 | 12 | 150 | 484 | 171 | 241 | 241 | 45.5 | 46 | M8 |
| DC12-180 | 12 | 180 | 532 | 206 | 216 | 222 | 56 | 56.5 | M8 |
| DC12-200 | 12 | 200 | 532 | 206 | 216 | 222 | 58.4 | 58.9 | M8 |
| DC12-230 | 12 | 230 | 522 | 240 | 219 | 225 | 65 | 65.5 | M8 |
| DC12-250 | 12 | 250 | 520 | 269 | 203 | 207 | 71 | 71.5 | M8 |
| DC12-300 | 12 | 300 | 520 | 269 | 220 | 226 | 77 | 77.5 | M8 |
| NOTE: All Above details shall be changed without prior notice, CSBattery reserves the right to explain & update the lastest information. | |||||||||
Project name: Energy Storage System
Country: The Philippines
Year: 2018
In 2018, CSBattery supplied deep cycle AGm batteries in Philippines. Our team installed model no DC12-100(12V 100Ah) of AGM VRLA batteries as backup power for energy storage solution of 28.8KWH off-grid solar system.
DC series long life vrla AGM deep cycle battery uses a different chemistry additives in the positive plates and special AGM separators, The DC series features 70% higher cyclic life with 15 years of float life when compared to the standard Duration range. Our workshop Produce plate by ourself . For urgent project we support 10-15days fast delivery time.
